ASME-2007 PAGE Number V Test Shim Test Piece Of Magnetic Particle Testing CX-230

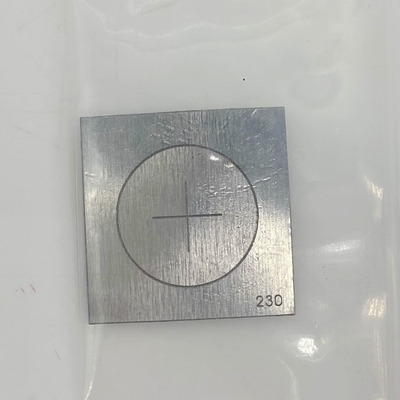

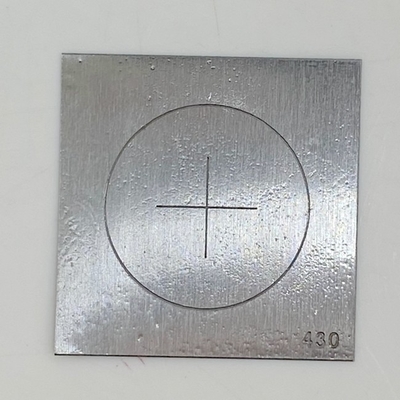

Test Shim Of Magnetic Particle Testing CX-230
| inspection items | The condition, method and demand of the test | inspection demand | |
| Color | Metal surface presents bright silver, no rust.no scratch, no corrosion and so on | Past muster | |
| Planeness | Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.005in | Past muster | |
| The size of sheet iron and cutting groove |

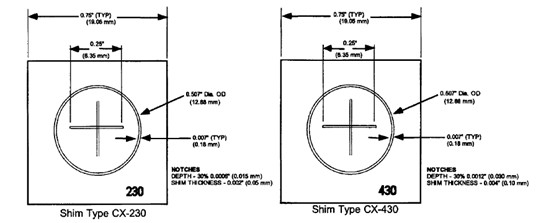

The side length of test piece tested by milscale is 0.79inch×0.79inch. The average thickness of test piece cx4-230 is 0.002inch.The artificial detect symbol four“ The thickness of test piece cx4-230 is 0.002inch.the groove depth is 0.0006inch,the groove width is 0.006inch.
|
Past muster | |
| Quality |
The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, |
Past muster | |
|
|
|
||
Other Magnetic flaw detectors test block:
MT test block
Type N1: 45N, 5kgs
Type N2: 118N 12kgs
Type N3: 177N 18kgs
MT standard block
Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter 0.07inch, center hole diameter 31.8mm
Type E: AC
