10 Hz to 4000 Hz Laboratory And On Site Portable Shaker Vibration Calibrator Handheld

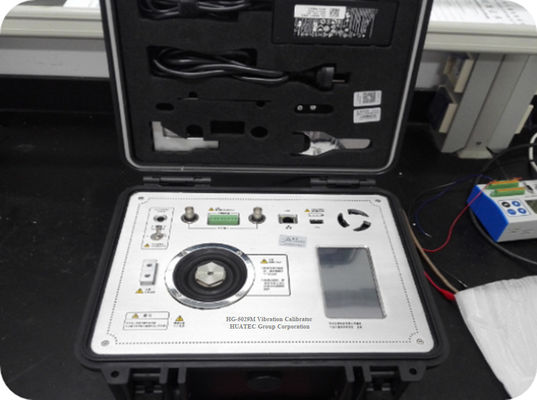

HG-5029M Portable medium frequency vibration calibration device
The portable IF vibration standard device integrates a small IF standard vibration table, built-in acceleration sensor and 24-bit dynamic signal analyzer, which has high precision and good stability, and can complete the calibration of working vibration meter, acceleration sensor, speed sensor, displacement sensor and other instruments on site. It can be used in metrological calibration laboratory, enterprise or field.
Main feature
high integration
Built-in 24-bit high precision vibration controller
can be automatically calibrated independently
can be connected to external laptop control
with built-in large capacity lithium battery
has a variety of extension tools
Main technical index
Frequency range: 10 Hz to 4000 Hz
Maximum acceleration: ≥100 m/s2
Standard sensor frequency range: 10 Hz ~ 10 kHz;
Number of input channels for dynamic signal analyzer: ≥2pcs
Signal analysis Dynamic range: better than 100 dB
Signal analysis frequency range: better than 100 kHz
