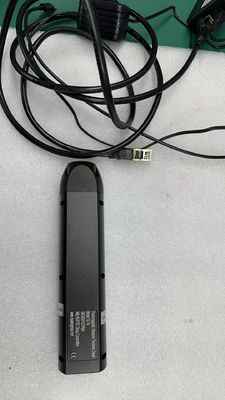

RS485 Ethernet Non contact no coupling Single echo(I-E), Dual echo(E-E) EMAT Ultrasonic Thickness Gauge TG-14D
HUATEC TG-14D electromagnetic EMAT ultrasonic thickness gauge is a new developed thickness gauge,ultra small, non-contact measurement, that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.
Product Features
Basic Parameters

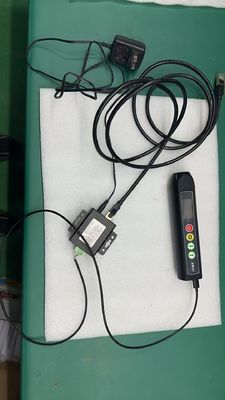

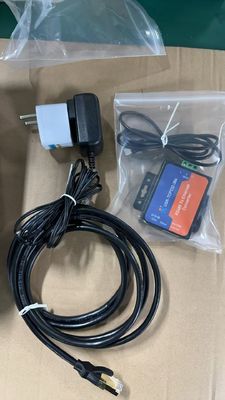

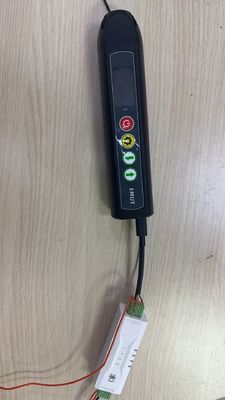

| Sampling rate | 80MSPS |
| Bandwidth | 2.5MHz～6MHz |
| Launch | ± 600V_400Hz_125ns |
| Gain | Automatic 0～96dB, pace 1dB |
| Measurement accuracy | ±0.01mm |
| Sound velocity range | 400～9999 m/s |
| Effective range | 1.0～320mm |
| Average level | L, M, H three-level adjustable |
| Lifting distance | 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel) |
| Measurement type | Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials |
| Measurement mode | Single echo(I-E), Dual echo(E-E) |
| Auxiliary functions | Auto freeze, Auto gain, Auto sleep, Metric and British switching, Sound velocity saving, Backlight adjustment |
| Revised function | sound velocity calibration, high temperature compensation |
| Communication Interface | RS-485 or USB2.0 |
| Charger | 5V2A, Standard Type-C interface |
| Display screen | 1.47 inch 320×172 IPS_LCD |

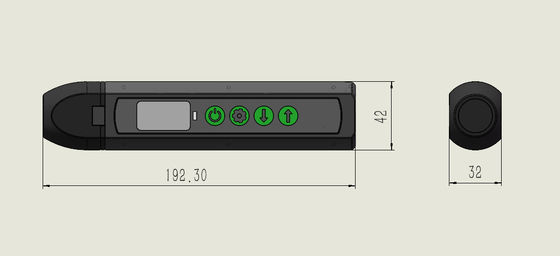

| Dimension | 178.4mm×42mm×32mm |
| Battery life | 3.7V 3400mAh Lithium battery, 6 hours of battery life |
| Bare weight |
A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g |
Standard Configurations
| Serial number | Name | Quantity | Remark |
| 1 | Host HUATEC TG-14D | 1 | |
| 2 | Normal temperature probe | 1 | 4MHz,Φ42mm*32mm |
| 3 | Charging data cable | 1 | |
| 4 | Charging plug | 1 | |
| 5 | Manual & HUATEC calibration certificate | 1 | |
| 6 | Iron based test block | 1 | |
| 7 | Aluminum based test block | 1 | |
| 8 | Packing box | 1 |
Optional Configuration(You can choose to order according to your needs, which is not included in the standard configuration)
| Serial number | Name | Quantity | Remark |
| 1 | High temperature probe | 1 | 4MHz,Φ33mm*40mm |
| 2 | Small diameter normal temperature probe | 1 | 4MHz,Φ13mm*36mm |
| 3 | Large diameter normal temperature probe | 1 | 4MHz,Φ40mm*60mm |
